Key Features

Benefits

• Reduces the need for additional interface hardware in some installations due to integrated digital and analogue signals.
• Supports remote operation and commissioning, reducing site visits for routine parameter changes.
• Allows centralised management of multiple devices within one system manager.
• Provides local and network-based connectivity options for system integration.

Technical Summary

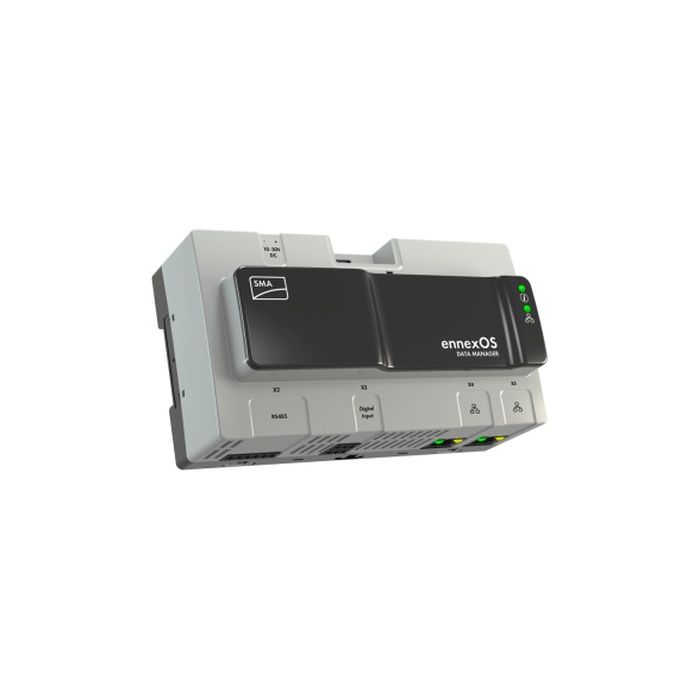

Type designation EDMM-20. Supports up to 50 devices, including up to 50 SMA Speedwire PV inverters, 50 third-party PV inverters via Modbus/TCP SunSpec, 50 SMA battery inverters and 50 energy meters. Maximum nominal system power is 2.5 MVA in closed-loop control and 7.5 MVA in open-loop control or monitoring only. Supply input 10 V to 30 V DC, typical power consumption 8 W. IP20 protection, indoor mounting, DIN rail mounting. Operating temperature range -20 °C to +60 °C, relative humidity 5% to 95% non-condensing.

Installation Notes

Indoor installation only. DIN rail mounting. External DC power supply required, with input voltage 10 V to 30 V DC. Wi-Fi access point is for commissioning and access to the user interface. Operating environment is restricted class 3K7; permissible relative humidity is 5% to 95% non-condensing.

Efficiency

Supports self-consumption control, peak load shaving and battery time-of-use optimisation. Automatic data recording for virtual generators from energy meters is supported.
