SKU: IS4P63A

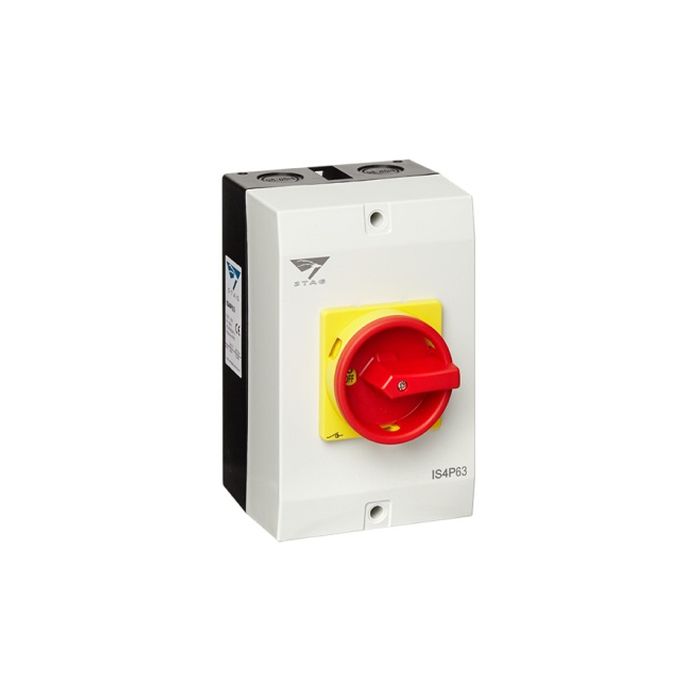

The IMO Stag AC Isolator 63A - 4 Pole ensures safe disconnection of electrical circuits in demanding environments. With a robust design and clear visibility of switch positions, it simplifies installation. Ideal for three-phase systems, this isolator enhances both safety and efficiency in your electrical projects.
You need to log in to access the data sheet, user manual, and warranty info.
Enclosed 4-pole rotary AC isolator rated at 63A, suitable for isolation and control applications up to 415V. The IP65 enclosure and lockable rotary handle make it suitable for external or exposed installation locations where equipment protection is required.
Provides 4-pole isolation for AC control and disconnect applications.
Rated at 63A for use in installations requiring this current capacity.
Enclosure protection helps protect against dust and water ingress.
Supports isolator lock-off for maintenance and safety procedures.
Polycarbonate enclosure construction with stainless steel lid screws.
Model IS4P63 enclosed rotary isolator. Rated operational current 63A (AC21), 4 poles, rated operating voltage 230-440V, rated voltage 415V, frequency 50/60 Hz and rated insulation voltage Ui 690V. Rated power for a 3-phase motor at 415V (AC23A) is 22 kW. Maximum cable size is 16 mm². Rated conditional short-circuit current is 20 × Ie, short-time withstand current is 12 × Ie at 415V for 1 second, and rated make/break capacity is 8 × Ie. Protection is IP65 enclosure / IP20 body. Mechanical life is 10 × 10³ operations. The polycarbonate enclosure has stainless steel lid screws. Dimensions are 175 × 115 × 100 mm, with 135 mm depth including the handle, and weight is 0.75 kg. Approvals are CE and SEMKO; compliance is IEC EN 60947-3 and RoHS.
Use the M20/25 gland knockouts and allow for the 135 mm depth including the handle. Maximum cable size is 16 mm² and tightening torque is 2 Nm. The handle is interlocked in the ON position.
Manufacturer
IMO Precision Controls
Commodity Code
8536508090
Dimensions (mm) (H x W x D)
175 x 115 x 100
Weight (kg)
0.75
