SKU: ART105897

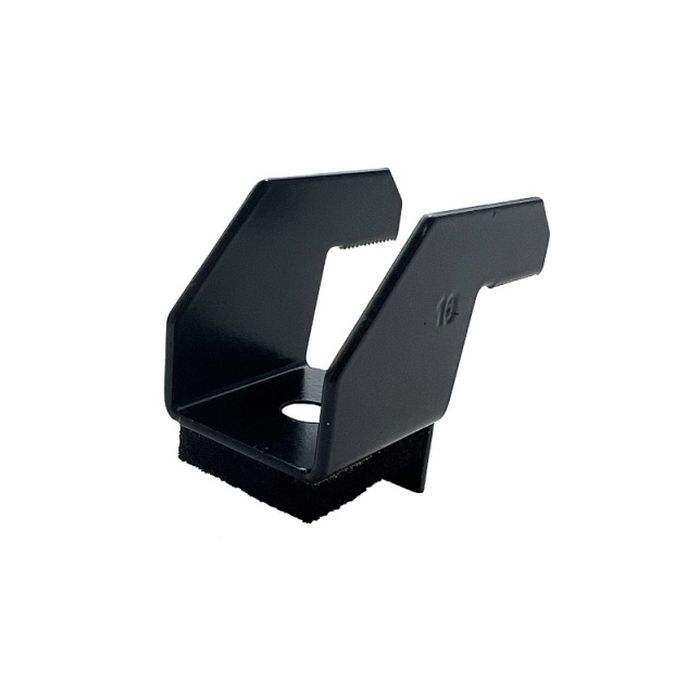

The GSE In Roof Single Clamp V2023 EPDM - H16 - Black offers a robust and aesthetic solution for mounting solar panels. Crafted from durable EPDM, it resists harsh weather and UV rays. The H16 design ensures compatibility with various panel sizes, making installation efficient and reliable for your solar projects.
You need to log in to access the data sheet, user manual, and warranty info.
BIPV in-roof system component for integrating standard PV modules into pitched roof installations. The GSE Integration IN-ROOF SYSTEM is specified for roof integration on a wide range of roof coverings and module formats.
BIPV in-roof system for standard PV modules used in roof-integrated installations.
Suitable for roof slopes from 12° to 50°.
Listed for use on all types of roof covering.
Supports module dimensions up to 450 Wp and up to 600 Wp, subject to the stated module length and width ranges.
Constructed from PP, aluminium and stainless steel, listed as 100% recyclable.
GSE Integration IN-ROOF SYSTEM for standard PV modules. Roof slope: 12° to 50°. Roof covering: all types. Weight: 2.8 to 3.7 kg/m². Temperature range: -30°C to 100°C. Materials: PP, aluminium and stainless steel. Module coverage includes formats up to 450 Wp and up to 600 Wp within the stated module length and width ranges.
Suitable for pitched roof integration on roofs with slopes between 12° and 50°. The source data states 10 to 16 panels can be installed in 6 hours. Pallet quantity noted as 116 half-frames per pallet.
Material is listed as 100% recyclable. No product efficiency rating is stated in the supplied data.
Weight (kg)
0.03
Manufacturer
GSE
Commodity Code
8541900000
Dimensions (mm) (H x W x D)
27 x 48 x 25
