SMA EV Charging 22kW - Three Phase

SMA Solar SKU: EVC22-3AC-20

More Details

The SMA EV Charging 22kW - Three Phase is a smart, PV-optimised EV charger that integrates seamlessly with SMA energy systems. It features automatic phase switching, intelligent charging modes, and supports future technologies like dynamic tariffs and AC bidirectional charging.

Documents

SMA EV Charging 22kW - Three Phase

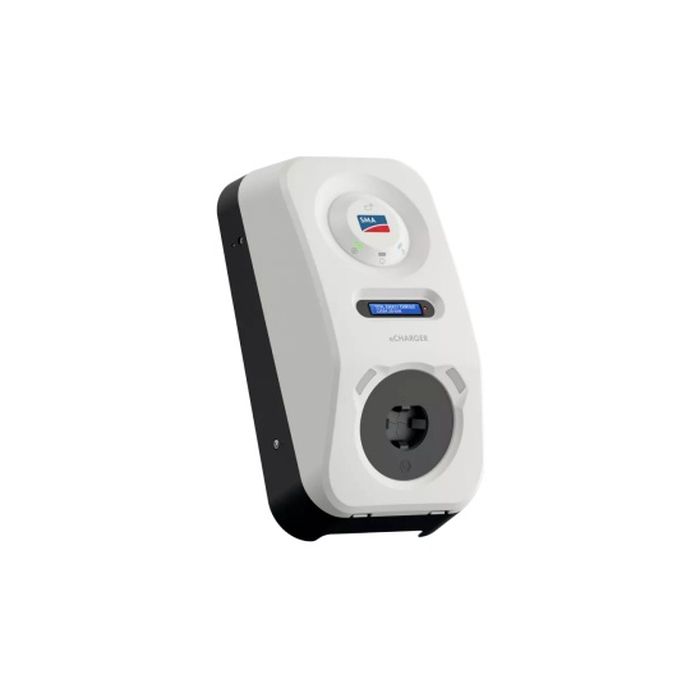

The SMA eCharger EVC22-3AC-20 is a three-phase AC EV charger for grid-connected charging applications. It supports configurable charging power up to 22 kW, with PV-optimised charging functions for use with self-generated electricity.

Key Features
22 kW three-phase AC charging

Configurable charging power from 1.38 kW to 22 kW on 1N~ 230 V or 3N~ 400 V supplies.

PV-optimised charging

Includes PV-optimised charging, intelligent charging modes and automatic phase switching to support charging with available solar generation.

Type 2 socket with shutter

Vehicle connection is via a Type 2 charging socket with shutter, in accordance with IEC 62196-1/2.

Ingress and impact protection

Communication and access control

Supports OCPP 1.6-JSON, RFID authorisation and SMA Modbus for charging management and backend integration.

Benefits
  • Supports charging from self-generated solar electricity when PV output is low, using automatic phase switching.
  • Works on single-phase and three-phase AC supplies.
  • IP54 / IK10 protection supports outdoor installation.
  • Can be integrated into EV charging management and backend systems using OCPP 1.6-JSON and SMA Modbus.
  • Low standby self-consumption of less than 6.5 W.
Technical Summary

SMA eCharger EVC22-3AC-20, three-phase AC EV charger. Charge power 1.38 kW to 22 kW configurable. Nominal voltage 1N~ AC 230 V / 3N~ AC 400 V, 50/60 Hz, max. 32 A per line conductor. Type 2 socket with shutter. Internal DC residual current detection 6 mA functional according to IEC 62955. External RCD compatibility: type A 30 mA. Grid configurations: TN / TT / IT. Dimensions 270 x 495 x 190 mm, weight 5.0 kg. Standby self-consumption <6.5 W. Warranty five years.

Installation Notes

AC connection via spring terminal. Compatible with TN, TT and IT grid configurations. Charging power can be limited by password, including to 11 kW. Charging cable lengths listed as 5.0 m, 7.5 m and 10.0 m. Degree of protection IP54 and impact resistance IK10.

Efficiency

PV-optimised charging and forecast-based operation support use of available solar generation. Standby self-consumption is less than 6.5 W.

Manufacturer

SMA Solar

Commodity Code

8504409500

Dimensions (mm) (H x W x D)

495 x 270 x 190

Weight (kg)

5
