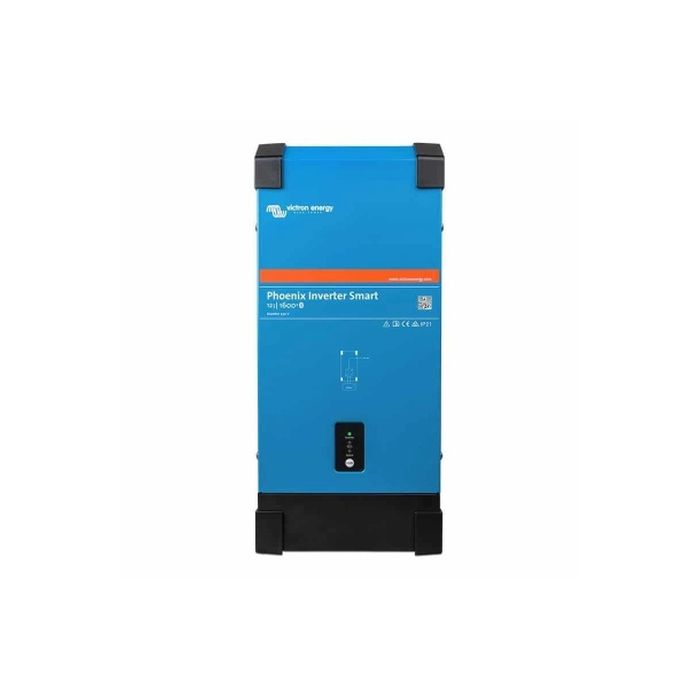

Victron Victron Phoenix Smart Inverter 12V/1600VA/230V

Victron Energy SKU: PIN122161000

More Details

The Victron Phoenix Smart Inverter 12V-1600VA-230V efficiently converts 12V DC power to 230V AC, ideal for off-grid, marine, and mobile applications. With a high efficiency of 92% and pure sine wave output, it ensures safe use with sensitive electronics. Enjoy easy installation and smart monitoring via Bluetooth.

Documents

Victron Victron Phoenix Smart Inverter 12V/1600VA/230V

The Victron Phoenix Inverter Smart 12/1600 is a 12 V DC to 230 V AC inverter for supplying standard AC loads from a battery system. It provides 1600 VA continuous output at 25°C, with Bluetooth and VE.Direct connectivity for configuration and monitoring.

Key Features
12/1600 inverter output

Delivers 1600 VA / 1300 W continuous output at 25°C, with 3000 W peak power for start-up demand.

Bluetooth and VE.Direct connectivity

Built-in Bluetooth and VE.Direct port support configuration and monitoring from a tablet, smartphone, or computer.

Protection functions

Includes low battery voltage alarm, cut-off and restart settings, short-circuit protection, and overheat protection.

ECO mode operation

ECO mode reduces idle consumption by switching to standby below a preset load threshold, with adjustable standby behaviour.

Remote on/off support

Remote on/off can be connected via a two-pole connector for system control integration.

Benefits
  • Supports remote configuration and monitoring via Bluetooth or VE.Direct
  • Helps manage low battery conditions through configurable protection settings
  • Provides start-up capacity for selected inductive and converter-type loads
  • ECO mode can reduce no-load consumption in standby operation
  • Remote on/off support simplifies system control integration
Technical Summary

12 V input inverter with 9.3–17 V input range and 230 VAC ±2% output. Continuous output is 1600 VA / 1300 W at 25°C, reducing to 1200 W at 40°C and 800 W at 65°C. Peak power is 3000 W. Maximum efficiency is 92%. Protection category is IP21. Operating temperature range is -40 to +65°C with fan-assisted cooling. Weight is 12 kg and dimensions are 485 x 219 x 125 mm.

Installation Notes

IP21 protection is intended for indoor installation. Battery connection is via M8 bolts and the 230 V AC connection uses screw terminals. A VE.Direct to USB interface cable is needed for computer connection. Remote on/off can be connected via a two-pole connector, or through the H and L terminals as specified.

Efficiency

Maximum efficiency is 92%. ECO mode is available and zero load power in ECO mode is 0.6 W for the 12 V version.

Weight (kg)

12.4

Manufacturer

Victron Energy

Commodity Code

8504408490

Communication

VE.Can, VE.Direct, Bluetooth

Nominal Voltage (V)

230.00

Dimensions (mm) (H x W x D)

560 x 240 x 300

AC Power (kW)

3000.00

Warranty (Years)

5 Years

Max Voltage (V)

17

IP Rating

IP21

PDF Icon

Victron Phoenix Smart Inverter Datasheet
