SKU: PIN241371200
The Victron Phoenix Inverter 24V-375VA-230V VEDirect with Schuko Socket offers reliable power conversion from 24V DC to 230V AC. Ideal for off-grid and mobile applications, this compact inverter features a 375VA capacity, VEDirect communication for easy monitoring, and a user-friendly Schuko socket for direct device connections.
You need to log in to access the data sheet, user manual, and warranty info.

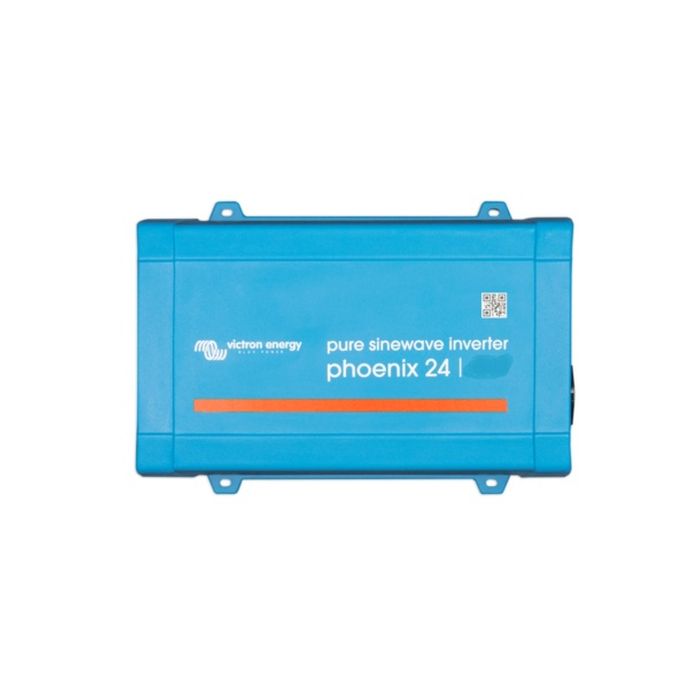

The Victron Phoenix Inverter 24V/375VA/230V VE.Direct is a single-phase DC-to-AC inverter for converting 24V battery power to 230V AC. It is specified with a Schuko outlet and VE.Direct communication for monitoring and configuration.
Supports connection for monitoring and configuration via compatible VE.Direct interfaces and devices.
Configured for 24V battery systems with 230V AC output at 50Hz or 60Hz, adjustable within the stated range.
Rated at 375VA continuous power at 25°C with 700W peak output for short-duration higher starting demand.
Reduces idle consumption by switching to standby below the preset load threshold; stop and start settings are adjustable.
Protected against short circuit and overheating caused by overload or high ambient temperature.
24V DC input inverter with 230VAC output, 375VA continuous rating at 25°C, 300W at 40°C, 700W peak power, 18.4-34.0V input range, 89% maximum efficiency, IP21 protection category, operating temperature range -40 to +65°C with fan-assisted cooling, weight 3.0kg, dimensions 86 x 165 x 260 mm.
DC connection is via screw terminals with a maximum cable cross-section of 10mm² / AWG8. VE.Direct to USB interface cable is required for computer connection. VE.Direct Bluetooth Smart dongle is required for smartphone, tablet, or MacBook connection. Remote on/off wiring is supported via the two-pole connector. IP21 protection indicates indoor installation conditions only.
Maximum efficiency is 89%. ECO mode reduces default zero-load power consumption, with the 24V model listed at 0.9W in ECO mode.
Weight (kg)
3.25
Manufacturer
Victron Energy
Commodity Code
8504408490
Communication
VE.Direct, Bluetooth
Nominal Voltage (V)
230.00
Dimensions (mm) (H x W x D)
300 x 210 x 150
AC Power (kW)
700.00
Max Voltage (V)
34
IP Rating
IP21
