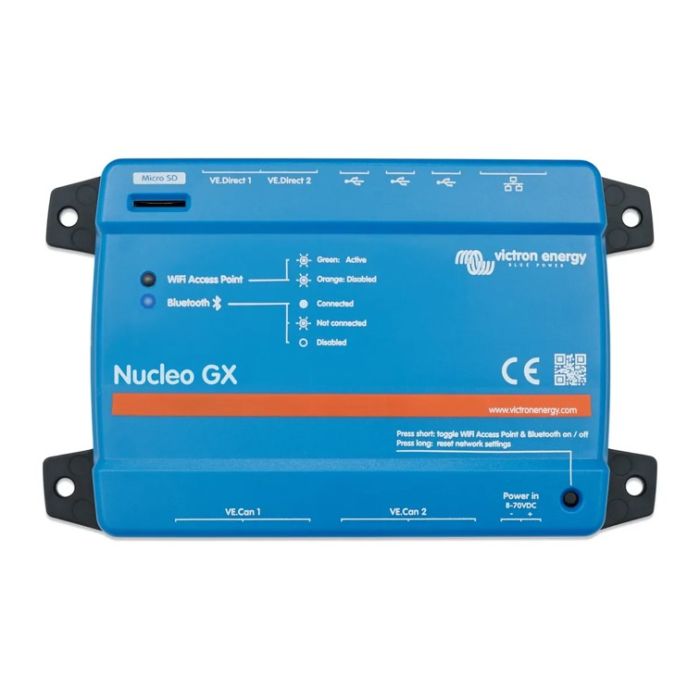

Victron Nucleo GX

The Victron Nucleo GX is a compact and high-performance communication centre designed for monitoring and controlling your Victron system. With its advanced features and reliable connectivity, it simplifies system management and enhances your overall experience.

Key Features

• Flexible Connectivity: Supports up to 25 connected devices via VE.Direct and USB, with additional connections through VE.Can.
• Remote Access: Monitor and control your system remotely via Victron Remote Management (VRM), local area network (LAN), or built-in WiFi.
• Easy Setup: Quick installation on a wall or DIN rail with Bluetooth support for configuration using the VictronConnect app.
• Real-Time Monitoring: Access real-time system information, including battery state of charge and power consumption.
• Expandable Functionality: Add features like VE.Bus connectivity and additional sensors using optional USB accessories.

Benefits

The Nucleo GX ensures fast system response and reliable performance, making it an ideal choice for VE.Can-based installations such as renewable energy systems. It allows you to stay informed about your system's performance, enabling proactive management and maintenance. With the ability to monitor and control your setup from anywhere, you can optimise the functionality of your Victron system with ease.

Technical Specifications

• Supply Voltage: 8 – 70 V DC
• Communication Ports:
  • VE.Direct Ports: 2 (max. 25 devices)
  • VE.Can: 2 ports (1 isolated, 1 non-isolated)
  • Ethernet: Yes
  • WiFi: Yes
  • Bluetooth Smart: Yes
  • USB Host Ports: 3 x USB-A (max. 1.5 A @ 5 V combined)
  • MicroSD Card Slot: Support for SDHC cards up to 32GB
• Dimensions: 78 x 154 x 48 mm (without connectors and mounting accessories)
• Operating Temperature Range: -20 to +50 °C
• Protection Category: IP20
• Safety Standards: IEC 62368-1
• EMC Standards: EN 301489-1, EN 301489-17
• Automotive Standards: ECE R10-6

For more detailed information about the Nucleo GX, please visit the Victron GX product range page.

Installation and Accessories

The Nucleo GX is easy to mount on a wall or DIN rail with the optional DIN35 adapter. Included accessories ensure you have everything you need for a smooth installation.
