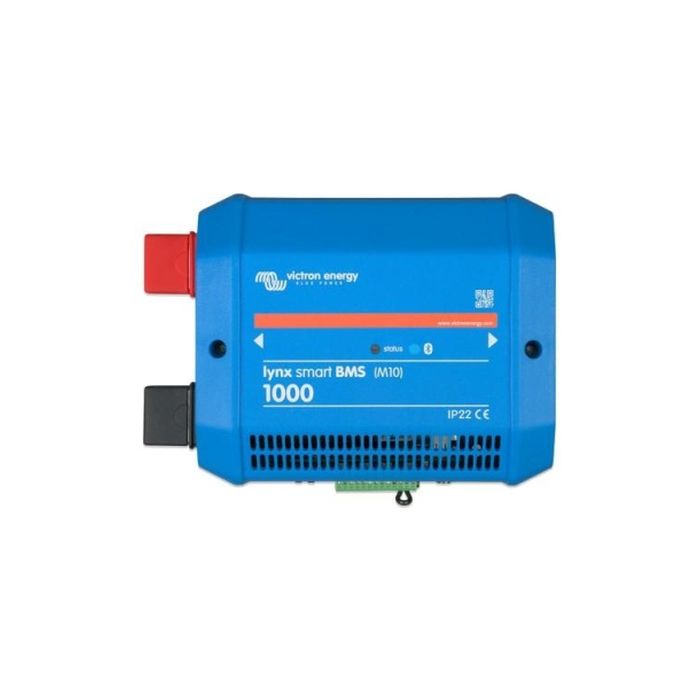

Victron Lynx Smart BMS 1000 NG (M10)

Victron Energy SKU: LYN034170310

More Details
The Victron Lynx Smart BMS 1000 NG (M10) is an advanced battery management system offering remote control, monitoring capabilities, and a built-in safety mechanism for comprehensive protection and oversight of your energy storage solutions.
Documents

Victron Lynx Smart BMS 1000 NG (M10)

Battery management system for Victron Lithium Battery Smart battery installations. This Lynx Smart BMS 1000 A (M10) version provides system protection, contactor control and monitoring for 12 V, 24 V or 48 V battery systems.

Key Features
1000 A main safety contactor

Built-in 1000 A continuous contactor, rated to 1200 A for 5 minutes, for main system switching and battery protection.

Pre-charge circuit

Reduces inrush current when connecting inverter/charger or other capacitive loads.

Monitoring and control integration

Supports monitoring and control via Bluetooth, VictronConnect, GX devices and the VRM Portal.

VE.Can and NMEA 2000 communication

Provides VE.Can connection via RJ45 and supports marine network integration, including NMEA 2000 and J1939.

Auxiliary and relay outputs

Includes AUX output, allow-to-charge, allow-to-discharge and alarm relay functions for system control.

Benefits
  • Can act as a remote controllable main system switch
  • Helps limit inrush current during inverter/charger connection
  • Supports battery system monitoring and diagnostics
  • Provides auxiliary power for specific loads after BMS shutdown
  • Can be integrated into networked marine battery systems
Technical Summary

Battery voltage range 9–60 VDC. Supported system voltages: 12, 24 or 48 V. Main contactor: 1000 A continuous, 1200 A for 5 minutes. Protection class IP22. Operating temperature range -40 °C to +60 °C. Busbar connection: M10, torque 33 Nm. Enclosure dimensions 230 x 180 x 100 mm; weight 2.7 kg.

Installation Notes

Busbar connection is M10 with 33 Nm torque. Battery BTV cables use male and female circular 3-pole connectors with M8 screw ring. Suitable for integration with Lynx Distributor systems. Up to 20 batteries can be connected in one system. Up to 5 BMS units can be paralleled for a redundant battery system.

Efficiency

Power consumption is listed at 0.3 mA in OFF mode, approximately 0.6 W in standby, and approximately 4.2 W in ON mode depending on relay state.

Weight (kg)

2.5

Manufacturer

Victron Energy

Commodity Code

8536901000

Dimensions (mm) (H x W x D)

190 x 300 x 110

PDF Icon

Datasheet Lynx Smart BMS
