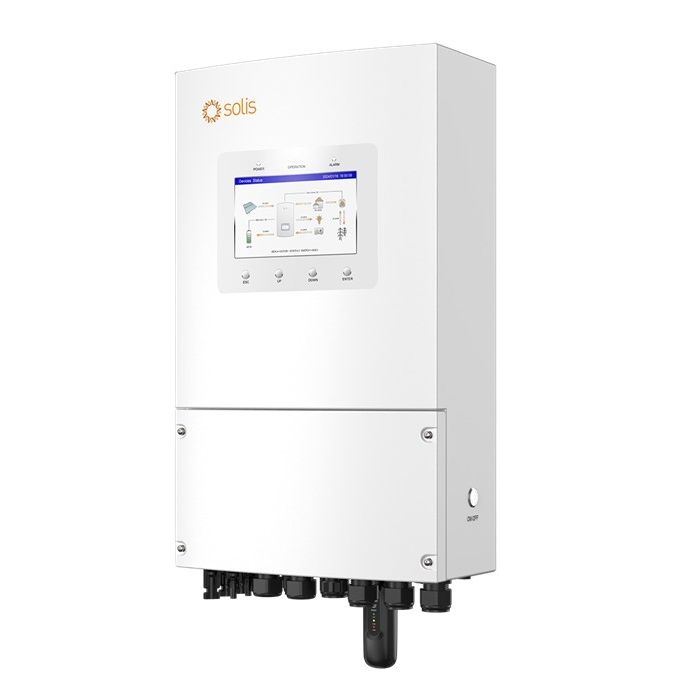

Solis S6 5kW 1 Phase Hybrid Inverter with DC - 2 MPPT for LV Batteries

Solis SKU: S6-EH1P5K-L-PLUS

More Details

The Solis S6 5kW 1 Phase Hybrid Inverter with DC features two Maximum Power Point Tracking (MPPT) inputs, making it ideal for flexible solar panel configurations. This inverter is generator-compatible, ensuring extended backup power during outages, and supports dual backup ports for efficient management of critical and non-critical loads. With a rapid switchover time of less than 4 milliseconds, it provides seamless transitions between grid and backup power, ensuring reliable energy supply even in challenging conditions.

Documents

Solis S6 5kW 1 Phase Hybrid Inverter

The Solis S6 5kW 1 Phase Hybrid Inverter is designed to meet your energy storage needs efficiently and reliably. This advanced inverter features two Maximum Power Point Tracking (MPPT) channels, optimising energy harvest from your solar panels and ensuring maximum utilisation of available power.

Key Features

  • Generator-Compatible: Extend your backup duration during grid outages.
  • Microgrid Capability: Multiple inverters can work together to form a microgrid.
  • Intelligent Load Control: Dual backup ports manage critical and non-critical loads effectively.
  • Overload Capacity: Supports 200% overload for 10 seconds, handling peak demands easily.
  • Seamless Transition: Automatic switchover time of less than 4 milliseconds for uninterrupted power supply.
  • Stable Power Supply: Maintains load stability even with weak grid or generator fluctuations.

Benefits

The Solis S6 inverter not only enhances your energy independence but also ensures reliable power management. With its intelligent features, you can take control of your energy consumption, reducing dependency on the grid and lowering electricity costs. This inverter is particularly beneficial for homeowners looking to maximise solar energy use and maintain power during outages.

Technical Specifications

  • Input DC (PV side):
    • Recommended max. PV array size: 6 kW
    • Max. input voltage: 500 V
    • MPPT voltage range: 90 - 435 V
  • Battery Compatibility:
    • Battery type: Lithium-ion / Lead-acid
    • Battery voltage range: 40 - 60 V
  • Output AC (Grid side):
    • Rated output power: 5 kW
    • Max. apparent output power: 5 kVA
    • Power factor: > 0.99
  • Efficiency:
    • Max. efficiency: 96.2%
    • EU efficiency: 96.1%
  • Dimensions: 335 × 560 × 253 mm
  • Weight: 23 kg
  • Protection Rating: IP66, suitable for outdoor installations.

With the Solis S6 5kW Hybrid Inverter, you can optimise your solar energy usage, ensuring a reliable and efficient power supply for your home or business. Make the smart choice for energy management today!

Max Current (A)

32

AC Power (kW)

5.00

Weight (kg)

23

Communication

CAN/RS485

Manufacturer

Solis

Commodity Code

8504408490

Dimensions (mm) (H x W x D)

335 x 560 x 253

Max Voltage (V)

500

Start Up Voltage (V)

90V

Inverter Power (kW)

10

Inverter Type

Hybrid

IP Rating

IP66

Capacity (kWh)

5

Battery Type

Li-ion / Lead-acid

Charge / Discharge Efficiency

95.3% / 93.9%

Max PV Power (kW)

8

PDF Icon

Solis S6 EH1P5K L PLUS Datasheet
