SKU: S5-GC110K

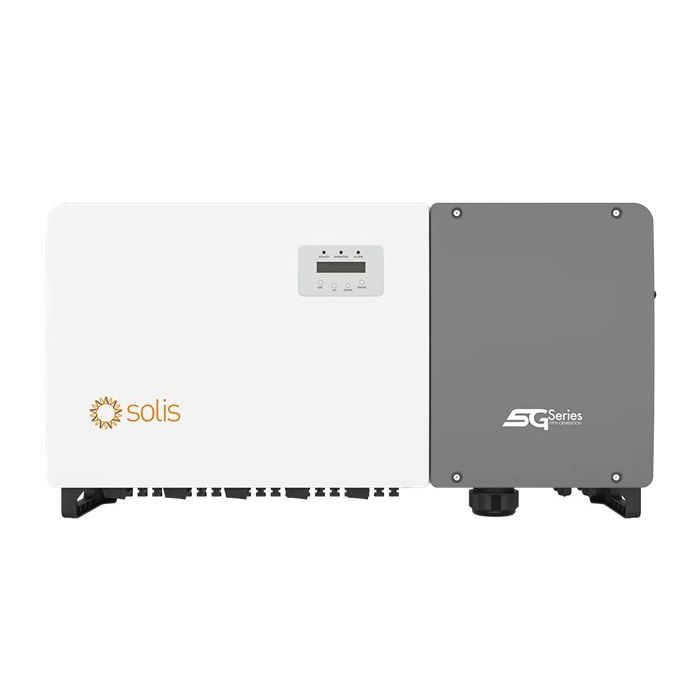

The Solis S5 110kW Solar Inverter - 3 Phase Inverter is built for large-scale UK solar projects. Offering 10 MPPTs, 98.7% efficiency, IP66 protection, and advanced safety features, it delivers high performance and reliable long-term operation.
You need to log in to access the data sheet, user manual, and warranty info.
Three-phase grid-tied solar inverter from the Solis S5-GC(100-110)K series, rated at 110 kW for PV system DC to AC conversion on 3-phase grid-connected installations. It includes 10 MPPTs, IP66 enclosure protection, transformerless topology and string-level monitoring functions.
Rated output power of 110 kW with 3/N/PE grid connection at 220/380 V or 230/400 V.
Supports 10 MPPTs with up to 20 input strings for multi-string PV array design.
MPPT voltage range 180-1000 V, maximum input voltage 1100 V and string current up to 16 A.
Maximum efficiency is 98.7% with EU efficiency of 98.3%.
IP66 ingress protection and intelligent fan cooling for exposed installation environments.
110 kW rated output power, 121 kVA maximum apparent output power, 3/N/PE 220/380 V or 230/400 V grid connection, 50/60 Hz. DC side supports up to 1100 V maximum input voltage, 180-1000 V MPPT range, 10 × 32 A maximum input current and 10 MPPTs / 20 strings. Maximum efficiency 98.7%, EU efficiency 98.3%. Dimensions 1065 × 567 × 344.5 mm, weight 91 kg, transformerless design, LCD display, RS485 communication.
AC connection uses OT terminal up to 185 mm². DC connection uses MC4 connectors and the DC side supports a Y connector. Communication is via RS485, with optional Wi-Fi, GPRS and PLC. Operating ambient temperature range is -30 to +60°C, with IP66 protection.
Maximum efficiency is 98.7% and EU efficiency is 98.3%. The inverter also has a >150% DC/AC ratio.
Manufacturer
Solis
Commodity Code
8504408490
Communication
RS485, Optional: Wi-Fi, GPRS, PLC
Dimensions (mm) (H x W x D)
1183 x 585 x 363
AC Power (kW)
110.00
Max Current (A)
183.8
Start Up Voltage (V)
195
Max Voltage (V)
1100
IP Rating
IP66
Weight (kg)
76
