SKU: PCS050-RW-400V-A01-01

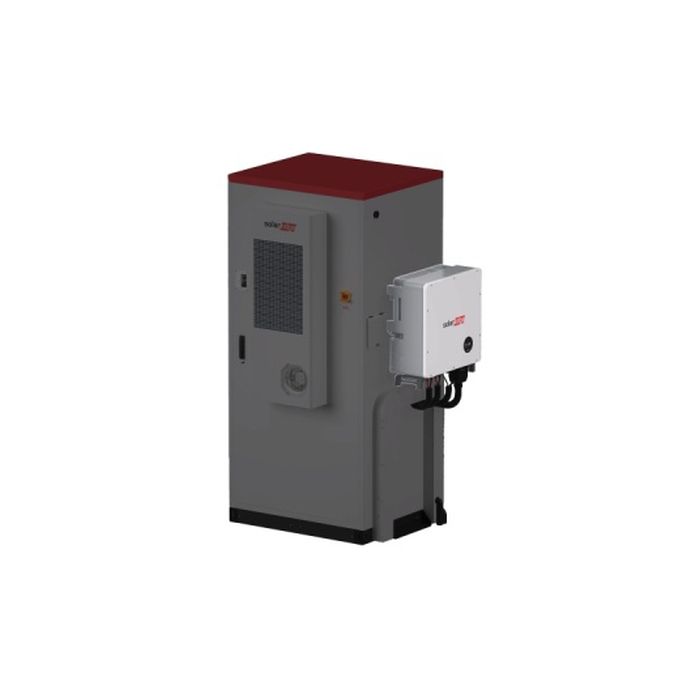

The SolarEdge 50KW PCS050 Battery Inverter is designed for optimal energy storage in commercial settings. With up to 97.5% efficiency and compatibility with various battery technologies, it enhances energy management. Its compact size simplifies installation while providing advanced monitoring for reliable performance, ensuring your sustainability goals are met.
You need to log in to access the data sheet, user manual, and warranty info.
The SolarEdge PCS050 is a 50 kW AC-coupled battery inverter for on-grid energy storage applications. It is part of the SolarEdge CSS – OD range and is specified for use with a SolarEdge AC-coupled PV system, with backup operation available via the separately purchased SolarEdge Commercial Backup Interface in selected countries.
Rated AC active power output of 50 kW with 55 kVA maximum apparent output power.
Includes reverse polarity protection, grid monitoring, earth fault protection, earth leakage protection, and integrated DC Type II and AC Type III surge protection.
IP65-rated enclosure for installation in more protected indoor or outdoor environments, subject to site conditions.
Maximum inverter efficiency is 97.5%.
Maximum of 2 paralleled battery cabinets per inverter, with cabling extension kit required when paralleling two cabinets on one inverter.
Rated AC active power output 50 kW; maximum AC apparent output power 55 kVA; maximum continuous output current 80 Aac per phase; nominal AC output voltage 400/230 Vac with 340–440 Vac range; 50/60 Hz operation; total harmonic distortion <3%; power factor range -1 to 1 leading/lagging; overall system transition time <20 ms. DC side includes 2 input interfaces and maximum DC input power of 55 kW. Communication ports: RS-485 and CAN. Dimensions 650 x 324 x 715 mm; weight 68 kg; IP65; air cooling.
Requires an AC-coupled SolarEdge PV system on site. AC input cable cross section is 25–35 mm² with M6 lugs; use copper cables only and flexible multi-stranded class 6 conductors are recommended. When paralleling two battery cabinets on one inverter, cabling extension kit CSS-O1-C-B01-XX is required. Compatible with Delta/WYE grid types; in backup topology with the SolarEdge Commercial Backup Interface, only 3W + PE are used. On-grid nominal output is 400/230 Vac; during backup the output voltage is 400 V.
Maximum inverter efficiency is 97.5%. The product supports self-consumption, peak shaving and tariff optimisation modes, and uses the SolarEdge ONE optimisation platform for site energy management. Performance warranty is stated as 6000 cycles or 10 years up to 70% SoH.
Weight (kg)
73
Manufacturer
SolarEdge Technologies
Nominal Voltage (V)
400.00
Communication
CAN/RS485
Commodity Code
8504401990
Dimensions (mm) (H x W x D)
435 x 765 x 940
Max Voltage (V)
440
Inverter Power (kW)
55
IP Rating
IP65
