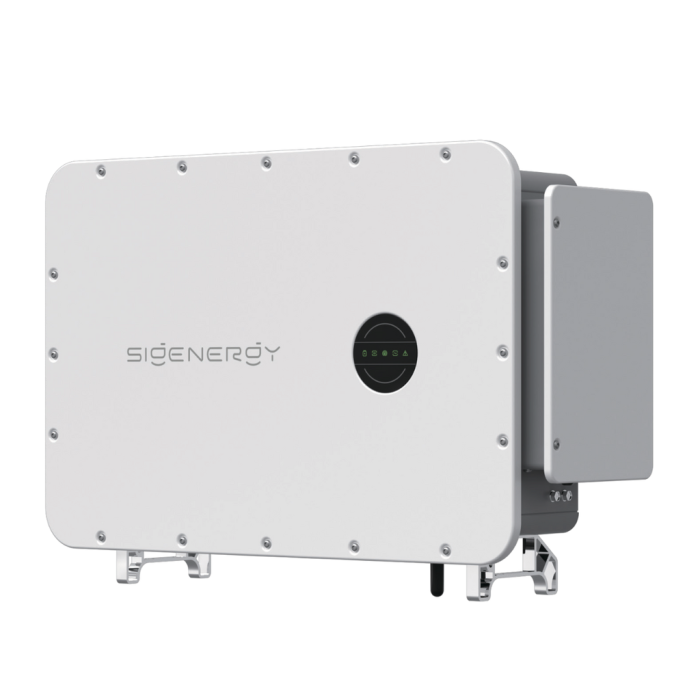

Sigenergy Sigen PV 110M1-HYB — hybrid power for European C&I

The Sigenergy Sigen PV 110M1-HYB unifies PV, battery and grid or generator support in one platform. As a flagship solution in the Inverters category, it is engineered for 400 V European networks to deliver smarter self-consumption, peak-shaving and dependable backup for logistics, estates, manufacturing and retail. These products offer advanced features and are from leading manufacturers.

Outcomes your EU customers will value

• Continuity of service: 0 ms disruption when transferring to backup keeps tills, servers and processes online.
• Lower bills: up to 98.3% max efficiency converts more PV to usable energy and reduces demand charges.
• Headroom for tough loads: 150% overload for 10 s supports motor starts and impact loads without nuisance trips.

Installer advantages that speed delivery

• Clean array design: 8 MPPTs with two strings each and 1,100 V max DC input simplify wiring and cut BOS costs.
• Compact, manageable form factor: 1097 × 668 × 340 mm, 105 kg for tidy wall mounting in tight plant rooms.
• Fast commissioning and integration via WLAN, Fast Ethernet, RS485 and optional cellular CommMod.

Flexible system design and scalable storage

As a hybrid inverter, the Sigenergy Sigen PV 110M1-HYB delivers 110 kW nominal AC with up to 121 kVA apparent power on 380/400/480 V, 50/60 Hz grids. Pair natively with SigenStack BAT 12.0 using BC M2 0.5C/1C controllers; configure 4–21 battery modules per inverter to meet autonomy targets, then scale from kW to MW via the Energy Gateway. DC-coupled micro-grid capability boosts round-trip efficiency and streamlines layouts across EU estates and light industry.

Performance, protection and reliability

• AC output: 110,000 W nominal; 150,000 W peak for 10 s; PF 0.8 leading to 0.8 lagging; THDi < 3%.
• Environmental resilience: IP66 enclosure, −30 to +60 °C operation, 0–100% RH, altitude up to 5,000 m (derating ≥ 4,000 m).
• Integrated safety: DC reverse-polarity, insulation and residual-current monitoring, AFCI, Type II DC/AC surge protection, anti-islanding; IEC/EN 62109 and 61000 compliance.
