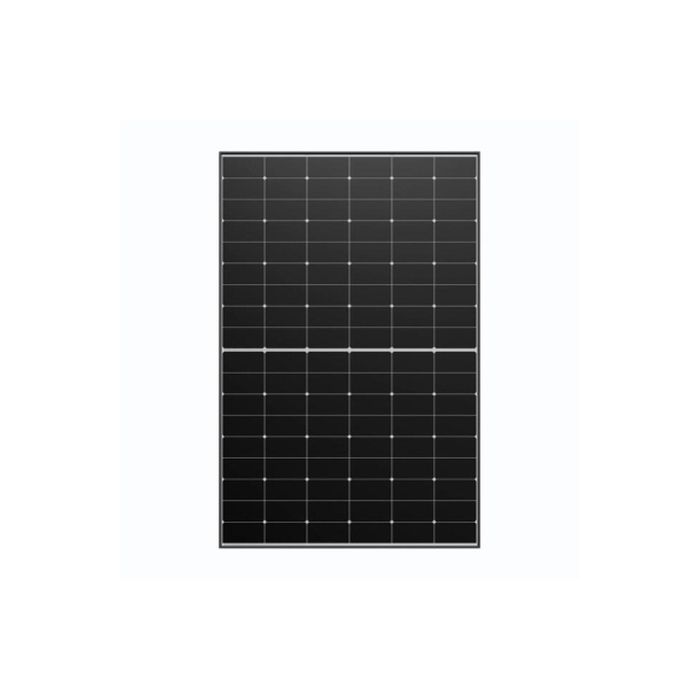

LONGi Solar 430W Hi-MoX6 Dual Glass Solar Module - Black Frame/White Glazing

LONGi SKU: LR5-54HTD-430M

More Details

The LONGi Solar 430W Hi-MoX6 Dual Glass Solar Module Bi-Facial Dual Glass combines high power output with bi-facial technology, capturing sunlight from both sides for increased energy yield. Its durable dual glass design ensures long-lasting performance, making it an ideal choice for diverse installations while contributing to a sustainable energy future.

Documents

LONGi Solar 430W Hi-MoX6 Dual Glass Solar Module - Black Frame/White Glazing

LONGi Hi-MO X6 Explorer LR5-54HTD-430M is a 430W dual glass solar module for grid-connected PV installations. It combines 22.0% module efficiency with an IP68 junction box, anodized aluminium alloy frame and 108 half-cell layout for standard rooftop solar applications.

Key Features
430W module output

Rated maximum power of 430W at STC for the LR5-54HTD-430M variant.

22.0% module efficiency

Dual glass construction

Double glass build with 2.0mm + 1.6mm semi-tempered glass.

IP68 junction box

Mechanical load rating

Front side static load of 5400Pa and rear side static load of 2400Pa.

Benefits
  • Dual glass construction supports robust module build.
  • IP68 junction box provides environmental protection at module level.
  • Wide operating temperature range from -40? to +85?.
  • Low stated degradation supports long-term output retention.
Technical Summary

LONGi Hi-MO X6 Explorer LR5-54HTD-430M solar module, 430W output, 22.0% efficiency, 108-cell (6×18) layout, DC1500V maximum system voltage, 30A maximum series fuse rating, 1722×1134×30 mm dimensions, IP68 junction box, Class II protection, IEC Class C fire rating.

Installation Notes

Use within the stated electrical limits: maximum system voltage DC1500V (IEC) and maximum series fuse rating 30A. Output cable is 4mm2 with ±1200mm length, and can be customised. Module dimensions are 1722×1134×30 mm.

Efficiency

Stated module efficiency is 22.0%. Power output tolerance is 0~3%. Datasheet degradation figures are <1.5% in year 1 and 0.40% per year from year 2 to 30.

Weight (kg)

22.5

Manufacturer

LONGi Solar

Vmpp (V)

32.90

Voc (V)

39.62

Impp (A)

13.07

Warranty: Materials and Construction (Years)

25

Dimensions (mm) (H x W x D)

1722 x 1134 x 30

Isc (A)

13.86

Warranty: Power output (Years)

30

Commodity Code

8541430000

Pallet Qty

36

Container Qty

936

Backsheet Colour

White

Frame Colour

Black

Peak Power (W)

430

PDF Icon

User Guide Longi Solar 54 66 72 Cell

PDF Icon

Warranty Longi Solar HiMO X6

PDF Icon

Datasheet Longi Solar LR5 54HTD 415~440M
