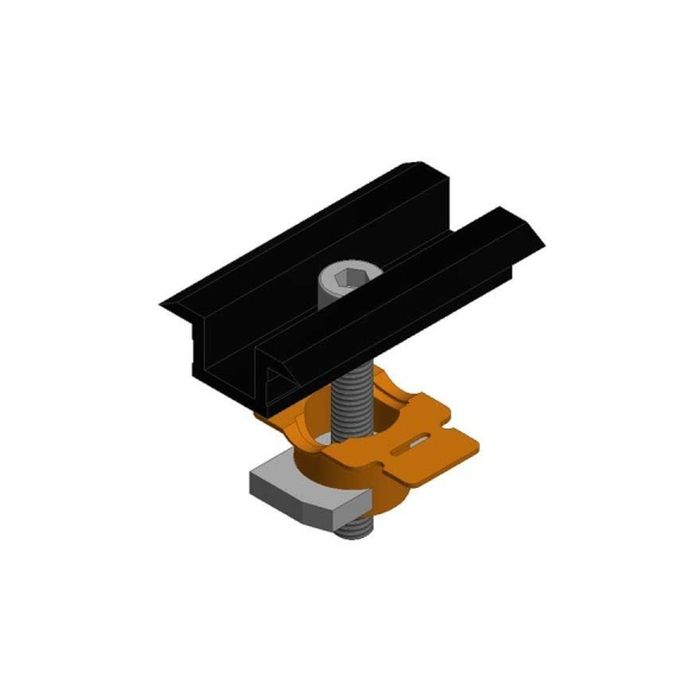

GSE Double Clamp - 30/40mm - Black

GSE SKU: ART101240

More Details

The GSE on Roof - Double Clamp - 30-40mm - Black provides a reliable solution for securely mounting photovoltaic modules on flat roofs. Its durable construction ensures long-lasting performance, while the easy installation saves time. With compatibility across leading brands, this clamp enhances your solar installation offerings.

Documents

GSE On Roof Double/Mid Clamp - 30/40mm - Black

Black double/mid clamp for securing adjacent 30–40 mm module frames to the GSE On-Roof rail.

  • Clamp body: 65 mm wide x 42 mm long
  • Height range: 33–49 mm
  • Application: Clamp between adjacent modules

Weight (kg)

0.08

Manufacturer

GSE

Commodity Code

7610909000

Dimensions (mm) (H x W x D)

230,5 x 340 x 260

PDF Icon

Installation Manual GSE On Roof

PDF Icon

Warranty GSE

PDF Icon

DataSheet GSE On Roof
