SKU: 4.210.157.002

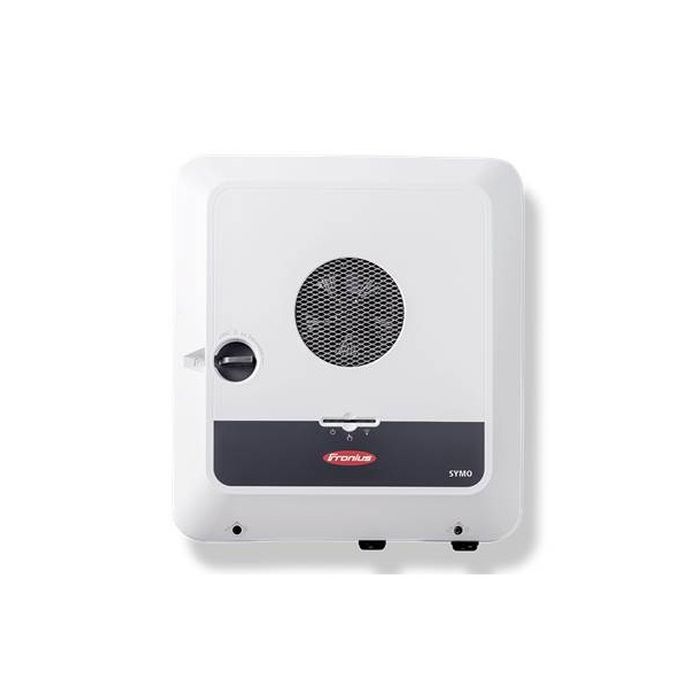

The Fronius GEN24 PLUS Symo 10kW 400V Hybrid Inverter is designed for efficient energy management. This three-phase inverter integrates photovoltaic and storage systems, offering high performance and user-friendly monitoring. Ideal for residential and commercial use, it ensures energy independence and flexibility for future upgrades, making it a smart choice for installers.
You need to log in to access the data sheet, user manual, and warranty info.
Three-phase hybrid inverter from the Fronius Symo GEN24 Plus range, intended for grid-connected solar PV systems. It supports residential PV installations and battery-ready configurations, with backup power functions available on the GEN24 Plus platform.
AC nominal output of 10,000 W with three-phase 400 V grid connection.
Supports PV systems with battery integration and backup power functions on the GEN24 Plus range.
Dual MPPT design with a usable MPP voltage range of 80 V to 800 V.
Maximum efficiency of 98.2% and European efficiency of 97.9%.
Suitable for indoor and outdoor installation with IP66 protection.
Three-phase hybrid inverter, 10,000 W AC nominal output, 10,000 VA maximum output power, 3~NPE 400 V / 230 V grid connection, 2 MPP trackers, DC input range 80 V to 1,000 V, usable MPP range 80 V to 800 V, maximum PV generator output 15 kWpeak, IP66 protection, transformerless design, regulated air cooling, dimensions 595 x 529 x 180 mm.
Indoor and outdoor installation permitted. AC connection uses 5-pole push-in spring terminals, and DC PV connection uses push-in spring terminals. Full Backup is available on the Symo GEN24 6.0 to 10.0 Plus range, but additional external components for grid separation are required.
Maximum efficiency is 98.2%, European efficiency is 97.9%, and MPP-tracking efficiency is greater than 99.9%. Nighttime power loss is below 10 W.
Weight (kg)
25
Manufacturer
Fronius
Built in DC
Yes
Commodity Code
8504408490
Communication
Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
Nominal Voltage (V)
400.00
Dimensions (mm) (H x W x D)
594 x 527 x 165
AC Power (kW)
10.00
Max Current (A)
16.4
No. of MPPT
2
Phases
3 Phase
Start Up Voltage (V)
80
Max Voltage (V)
1000
Inverter Type
Hybrid
IP Rating
IP66
Max PV Power (kW)
15
