SKU: DM705G12T-B66HSW
You need to log in to access the data sheet, user manual, and warranty info.

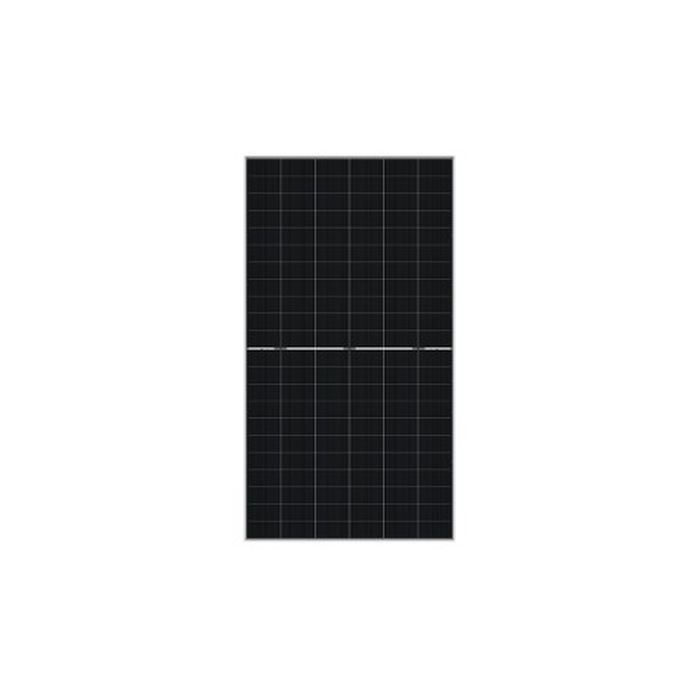

Bifacial double-glass solar module from DMEGC Solar’s Infinity series, using N-type mono-crystalline cells and rated at 705 W STC. It is intended for grid-tied PV installations where a high-power module with 1500 V DC system capability and IP68 junction box protection is required.
Matched module variant rated at 705 W with 22.7% module efficiency at STC.
Front and rear 2 mm heat strengthened glass construction for a dual-glass module format.
N-type mono-crystalline cell design in a 132-cell configuration (6×22).
3-diode junction box rated IP68 according to IEC 62790.
Maximum system voltage of 1500 V DC (IEC), with connector option rated for 1500 V.
Model DM705G12T-B66HSW. STC rating 705 W, module efficiency 22.7%, Vmp 40.58 V, Imp 17.40 A, Voc 48.62 V, Isc 18.48 A. NMOT 42±2 °C and NMOT power 537 W. Dimensions 2384 × 1303 × 33 mm, weight 37.7 kg. Maximum system voltage 1500 V DC, overcurrent protection rating 35 A, protection class II.
Install in line with the manufacturer’s installation instructions and warranty conditions. Cable lengths are specified for portrait and landscape mounting and can be customised. Connector option is PV-ZH202B or MC4-EVO 2A (1500 V).
Listed module efficiency is 22.7% at STC. Temperature coefficient of Pmax is -0.29 %/°C, with operating temperature from -40 to +85 °C.
Weight (kg)
37.7
Manufacturer
DMEGC Solar
Vmpp (V)
40.58
Voc (V)
48.62
Impp (A)
17.40
Warranty: Materials and Construction (Years)
15
Dimensions (mm) (H x W x D)
33 x 2384 x 1303
Isc (A)
18.48
Warranty: Power output (Years)
30
Commodity Code
8541430000
Backsheet Colour
White
Frame Colour
Silver
Peak Power (W)
705
