Blue Sea Systems e-Series 48V On/Off Battery Switch

Blue Sea Systems SKU: 9003E

More Details

Discover the Blue Sea Systems e-Series 48V On/Off Battery Switch, designed for reliability and safety in renewable energy systems. With versatile mounting options and robust construction, this switch ensures efficient energy management. It's a smart choice for installers and system owners seeking dependable performance in eco-conscious applications.

Documents

Blue Sea Systems 9003e e-Series Single-Circuit ON/OFF Battery Switch

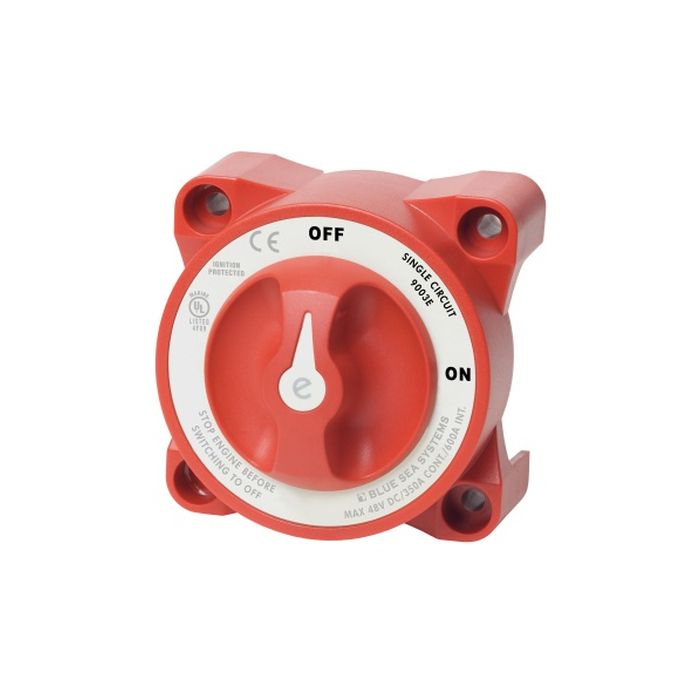

The Blue Sea Systems 9003e is a red e-Series battery switch for connecting or disconnecting one battery bank from one load group. It is designed for high-current marine applications and supports surface or rear-panel mounting.

  • Maximum operating voltage: 48V DC
  • Continuous rating: 350A DC
  • Intermittent rating: 600A DC for 5 minutes
  • Cranking rating: 1,200A DC for 30 seconds
  • Tin-plated copper 3/8in-16 (M10) studs for cable up to 4/0 AWG
  • Ignition protected and IP66 rated; UL 1107 listed and compliant with UL 1500 and SAE J1171 ignition-protection requirements

Manufacturer

Blue Sea Systems

Commodity Code

8536508090

Dimensions (mm) (H x W x D)

97.7 x 97.7 x 78.6

Weight (kg)

0.43

PDF Icon

Installation Manual Blue Sea 9003E
