Key Features

Benefits

• Supports multiple battery banks from a single charger.
• IP65 protection and coated circuit boards improve suitability for harsher environments.
• BatterySafe, storage mode and temperature compensation help manage charging conditions.
• Voltage sense helps compensate for cable losses.
• Can be used as a power supply where battery buffering is not available.

Technical Summary

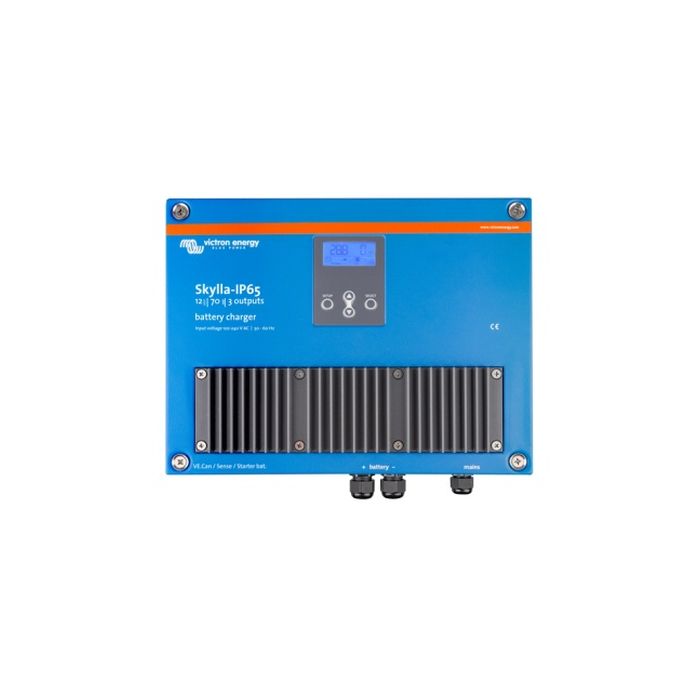

Model Skylla-IP65 12/70 (3). Input 120/230 VAC with 90-265 VAC range, 45-65 Hz, power factor 0.98. Charge current 70 A total output across three isolated outputs. 7-stage adaptive charge algorithm, 14.4 V absorption, 13.8 V float and 13.2 V storage for 12 V systems. Operating temperature range -20 to 60 °C, with full output current up to 40 °C. Protection category IP65. Dimensions 401 x 265 x 151 mm, weight 6 kg.

Installation Notes

Battery connection uses M6 bolts. 230 VAC connection uses screw-clamp terminals for 6 mm² (AWG 10). Remote on-off port can be connected to a Li-Ion BMS. VE.Can uses two RJ45 connectors and supports synchronised parallel operation with compatible linking cables.

Efficiency

Power factor is 0.98. Storage mode reduces float voltage after 24 hours without discharge to minimise gassing and corrosion. Variable absorption time helps limit unnecessary charging after shallow discharge cycles.
