SKU: S6-EH3P50K-H-EU

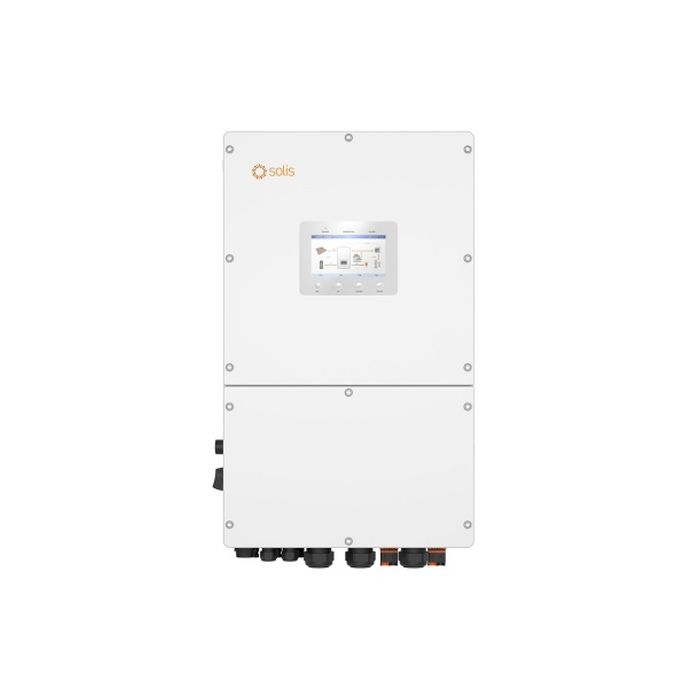

The Solis S6 50kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN) is designed for large-scale solar applications. With 4 Maximum Power Point Tracking (MPPT) inputs, it ensures optimal energy capture and supports high-voltage batteries, making it a reliable choice for efficient energy management.
You need to log in to access the data sheet, user manual, and warranty info.
Three phase high voltage energy storage inverter for grid-connected solar PV systems with battery integration. The 50 kW model provides 4 MPPTs, 8 PV strings and high-voltage battery support for energy storage installations requiring on-grid operation and backup output capability.
Rated output power is 50 kW with 3/N/PE, 230 V / 400 V grid connection.
Supports 4 MPPTs and up to 8 PV input strings for array design flexibility.
Compatible with Li-ion battery systems over a 150-800 V battery voltage range.
Back-up rated output power is 50 kW with switch time under 10 ms.
IP66 ingress protection supports outdoor installation exposure.
Three phase transformerless energy storage inverter with 50 kW rated output, 50 kVA apparent output, 96 kW maximum usable PV input and 1000 V maximum DC input voltage. MPPT range is 150-850 V with 4 MPPTs and 8 strings. Battery voltage range is 150-800 V with two battery inputs. Maximum efficiency is 97.8% and EU efficiency is 97.4%. IP66 enclosure, operating temperature range -25 to +60°C, and backup output rated at 50 kW with <10 ms transfer time.
PV connection uses MC4 quick connection plug. Battery connection is via terminal connector and AC connection is via terminal block. Communication is via CAN, RS485 and Ethernet, with Wi-Fi, Cellular and LAN listed as optional options. Supports parallel operation of up to 6 units.
Maximum efficiency is 97.8%, with EU efficiency of 97.4%. Battery charged by PV maximum efficiency is 98.5%, and battery charged/discharged to AC maximum efficiency is 97.5%.
Max Current (A)
76
AC Power (kW)
50.00
Max Charge / Discharge Power
55
Max Output Current (A)
76
Communication
CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN
Nominal Voltage (V)
400.00
Manufacturer
Solis
Commodity Code
8504408490
Dimensions (mm) (H x W x D)
530 x 880 x 290
Max Voltage (V)
1000
Start Up Voltage (V)
180
Inverter Power (kW)
50
IP Rating
IP66
Battery Voltage Range (V)
150-800 V
V Range of MPPT
150-850 V
Max PV Power (kW)
100
Max Charge / Discharge Current (A)
70
Weight (kg)
73
