SKU: S6-EH3P40K-H-EU
You need to log in to access the data sheet, user manual, and warranty info.

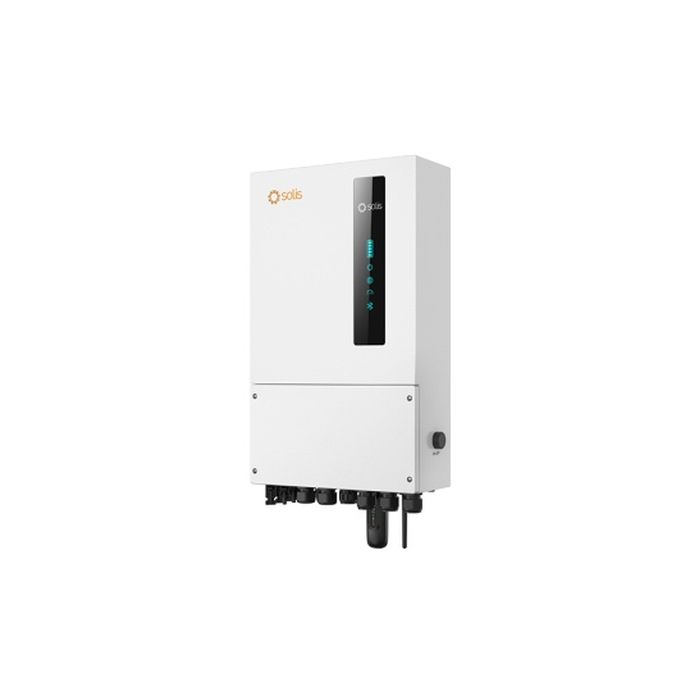

Three phase high voltage energy storage inverter for grid-tied and backup PV systems. The 40 kW model offers 4 MPPTs, battery connection for high-voltage Li-ion storage, and optional communications interfaces.
Rated output power of 40 kW with 40 kVA maximum apparent output power.
Supports 4 MPPTs and up to 8 PV strings for array design flexibility.
Maximum usable PV input power and recommended PV array size are both 80 kW.
Battery voltage range is 150-800 V with two battery inputs and CAN/RS485 communication.
Ingress protection rating of IP66 supports outdoor installation where environmental exposure is a consideration.
Three phase transformerless inverter with 40 kW rated output, 80 kW max. usable PV input power, 1000 V max. DC input voltage, 150-850 V MPPT range, and 150-800 V battery range. Max. efficiency is 97.8% and EU efficiency is 97.4%. Backup output is rated at 40 kW with 1.6 times rated apparent output for 2 seconds and backup switch time under 10 ms. IP66 rated, 73 kg, with operating temperature range of -25 to +60°C.
PV connection uses MC4 quick connection plug. Battery connection is via terminal connector and AC connection is via terminal block. Supports parallel operation of up to 6 units. Operating temperature range is -25 to +60°C and ingress protection is IP66.
Maximum efficiency is 97.8%, with EU efficiency of 97.4%. Battery charged by PV maximum efficiency is 98.5%, and battery charged/discharged to AC maximum efficiency is 97.5%. THDi is below 3%.
Max Current (A)
60.8
AC Power (kW)
40.00
Max Charge / Discharge Power
44
Max Output Current (A)
61
Communication
CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN
Nominal Voltage (V)
400.00
Manufacturer
Solis
Commodity Code
8504408490
Dimensions (mm) (H x W x D)
647 x 629 x 252
Max Voltage (V)
1000
Start Up Voltage (V)
180
Inverter Power (kW)
40
IP Rating
IP66
Application
Commercial
Battery Voltage Range (V)
150-800 V
V Range of MPPT
150-850 V
Max PV Power (kW)
80
Max Charge / Discharge Current (A)
70
Weight (kg)
73
