SKU: CSS-OU-O1-20-CA-B01-01

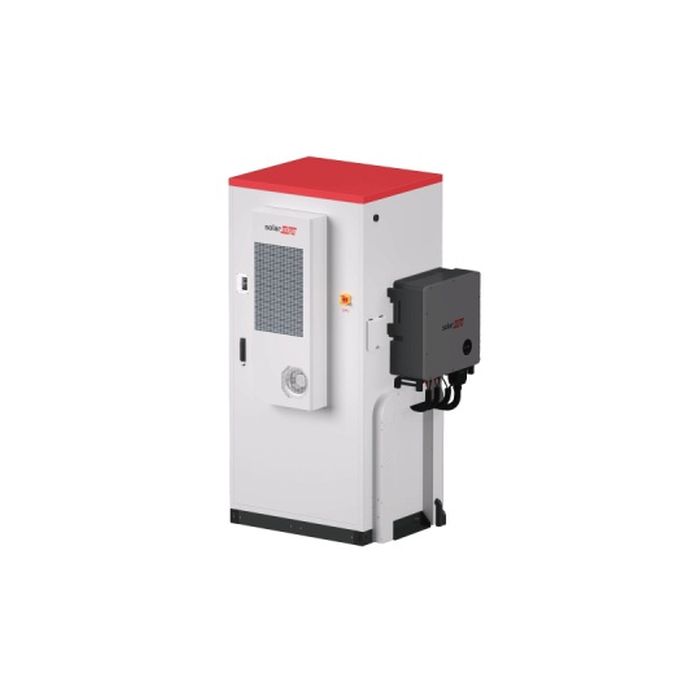

The SolarEdge 1024kWh Battery Cabinet is a reliable energy storage solution, designed to maximise your solar energy usage. With its high capacity and modular design, you can easily scale your system. Advanced safety features and intelligent monitoring ensure efficient performance, making it a smart choice for sustainable energy management.
You need to log in to access the data sheet, user manual, and warranty info.
SolarEdge CSS-OD 102.4 kWh LFP battery cabinet. Exact part number CSS-OU-O1-20-CA-B01-01, preserving the letter O in O1. Rated energy: 102.4 kWh; rated voltage: 512 Vdc. Contains two clusters, each with 10 energy modules and a Cluster Management Unit; each module uses 16S1P LFP-cell topology. Dimensions: 1100 W x 1100 D x 2380 H mm. Weight: 1433 kg.
Capacity (kWh)
102.4
Manufacturer
SolarEdge Technologies
Nominal Voltage (V)
512.00
Commodity Code
8507600090
Dimensions (mm) (H x W x D)
2555 x 1300 x 1315
IP Rating
IP54
Weight (kg)
1433
