SKU: SIG-11070010
You need to log in to access the data sheet, user manual, and warranty info.

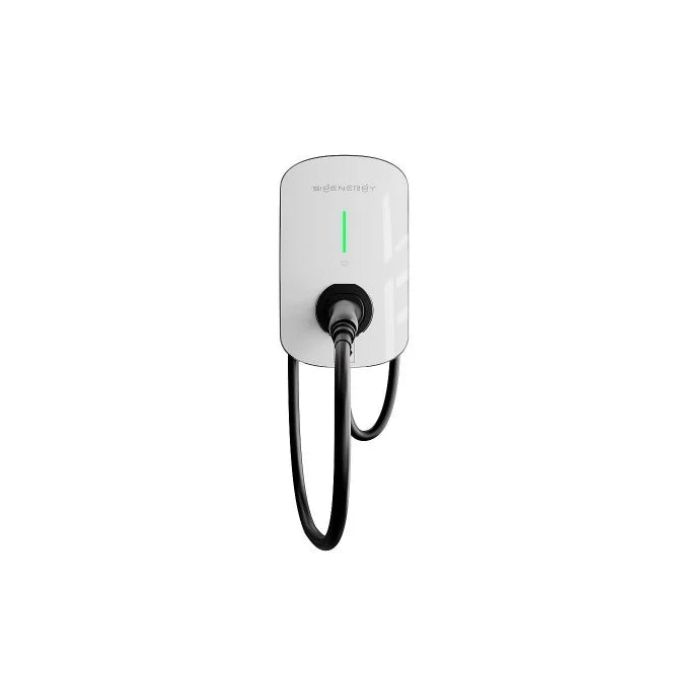

Sigenergy Sigen EVAC is a wall-mounted AC EV charger for indoor and outdoor installation. This 22 kW variant includes a Type 2 vehicle connection, 4G and WLAN communication, and a 5 m charging cable for AC EV charging applications.
Nominal charging power of 22 kW with 220 ~ 240 / 380 ~ 415 V output and 6 ~ 32 A current range.
Type 2 connector / Type 2 socket with shutter for AC EV charging.
Ingress protection rated IP65 for indoor and outdoor use.
Supports 4G, WLAN and Fast Ethernet communication, with RFID card, app and auto-charge authentication options.
Supports dynamic load management, phase switching and scheduled charging modes, including PV surplus charging and fast charging slots.
22 kW AC EV charger with Type 2 connector / socket with shutter, 5 m cable, IP65 enclosure, wall-mounted installation, 50 / 60 Hz input, integrated 6 mA DC fault detection and 30 mA AC fault detection. Protection functions include over / under voltage, overload, over temperature, PEN, ground fault and surge protection. Grounding system support: TT, TN and IT. Operating temperature range: -30 ~ 55 °C.
Wall-mounted installation. Standard charging cable length is 5 m. AC input cable width range is 2.5 ~ 6.0 mm². Top, bottom and rear wiring options are stated in the product information. Dynamic load management requires use with a Sigen Power Sensor.
Standby self-consumption is stated as < 3.6 W. The product documentation also references PV surplus charging for use with available solar generation.
Manufacturer
Sigenergy
Dimensions (mm) (H x W x D)
384 x 234 x 126
Commodity Code
8537109899
Weight (kg)
6.4
