SKU: ZAPPI-2H07TW

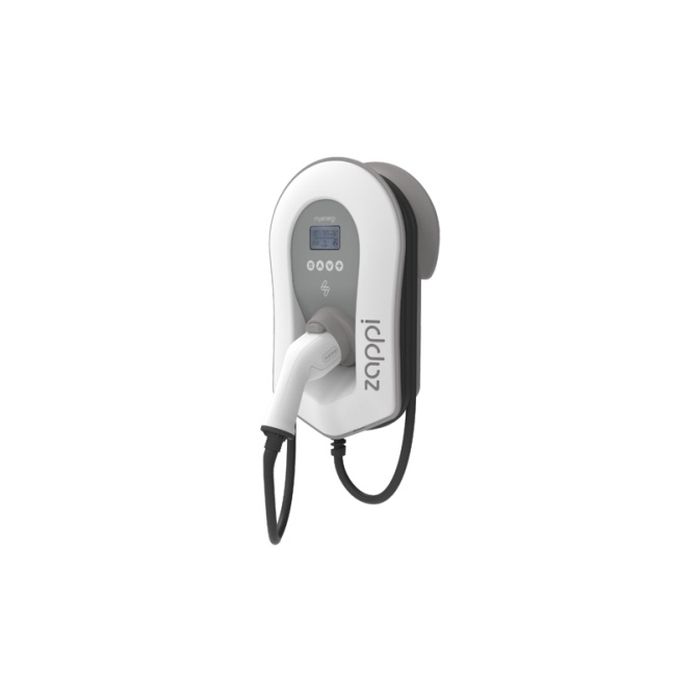

The myenergi zappi Eco-Smart EV Charge Point 7kW 1 Phase Type 2 is a cutting-edge electric vehicle charger that optimises renewable energy usage. Designed for residential and commercial use, it seamlessly integrates with solar or wind systems to maximise self-consumption, offering unparalleled charging flexibility.
You need to log in to access the data sheet, user manual, and warranty info.
The myenergi zappi is a 7kW single-phase Mode 3 EV charge point with a 6.5m Type 2 tethered cable. It is intended for permanent indoor or outdoor installation and includes ECO, ECO+ and FAST charging modes, with charging current able to respond to on-site solar PV or wind generation.
230V AC single-phase unit with variable charging current from 6A to 32A, up to 32A maximum rated current.
Supplied with a 6.5m tethered Type 2 connector for fixed-cable EV charging.
Offers ECO, ECO+ and FAST charging modes for different charging conditions.
Can charge using surplus solar PV or wind generation, with charging current adjusted in response to on-site generation and household consumption.
Includes integral 30mA Type A RCD and 6mA DC protection.
Model ZAPPI-207TW. 7kW rating, single-phase 230V AC, 50Hz supply, 32A max rated current. Type 2 tethered cable, 6.5m. Charging modes: ECO, ECO+ and FAST. IP65 enclosure. Operating temperature -25°C to +40°C. Supply cable entry via rear, bottom or side. Requires 40A curve B circuit breaker.
Permanent mounting for indoor or outdoor use. Requires a 40A curve B circuit breaker. Supply cable entry is available at rear, bottom or side. Tethered cable length is 6.5m.
Charging current is automatically and continually adjusted in response to on-site generation and household power consumption. ECO and ECO+ modes are intended to maximise self-consumption of microgeneration. Standby power consumption is 3W.
Manufacturer
myenergi
Dimensions (mm) (H x W x D)
439 x 282 x 122
Commodity Code
8504408490
Weight (kg)
7
