Key Features

485W STC output

23.8% module efficiency

Anodized aluminium alloy frame

Benefits

• DC1500V maximum system voltage supports use in higher-voltage PV string designs where specified.
• Front and rear static loading ratings of 5400Pa and 2400Pa provide defined mechanical load capability.
• IP68 junction box and operating temperature range of -40°C to +85°C support outdoor installation conditions.
• First-year power degradation is stated at <1%, with year 2-30 degradation of 0.35%.

Technical Summary

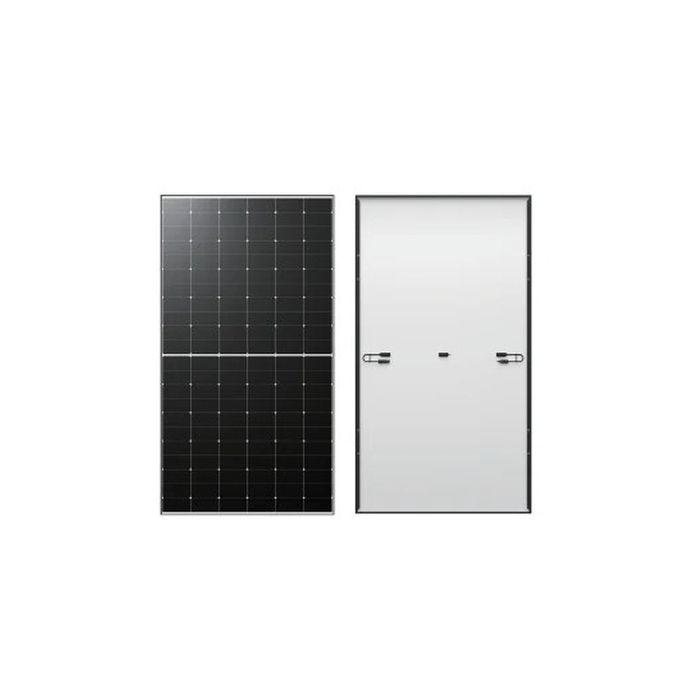

Monocrystalline solar module, model LR7-54HVH-485M, rated 485W at STC. Electrical values include Voc 40.40V, Isc 15.23A, Vmp 33.40V and Imp 14.53A. Module efficiency is 23.8%. Mechanical data includes 1800 × 1134 × 30 mm dimensions, 21.6 kg weight, 108 cells (6×18), single 3.2mm coated tempered glass, anodized aluminium alloy frame, and IP68 junction box. Maximum system voltage is DC1500V (IEC), maximum series fuse rating is 25A, operating temperature is -40°C to +85°C, and protection class is Class II.

Installation Notes

Use within the stated DC1500V maximum system voltage and 25A maximum series fuse rating. Module dimensions are 1800 × 1134 × 30 mm and weight is 21.6 kg. Packaging is 36 pcs per pallet, 216 pcs per 20'GP, and 864 pcs per 40'HC.

Efficiency

Module efficiency is stated at 23.8% at STC. Power degradation is stated as <1% in year one and 0.35% per year for years 2-30.
