SKU: INFSV2840

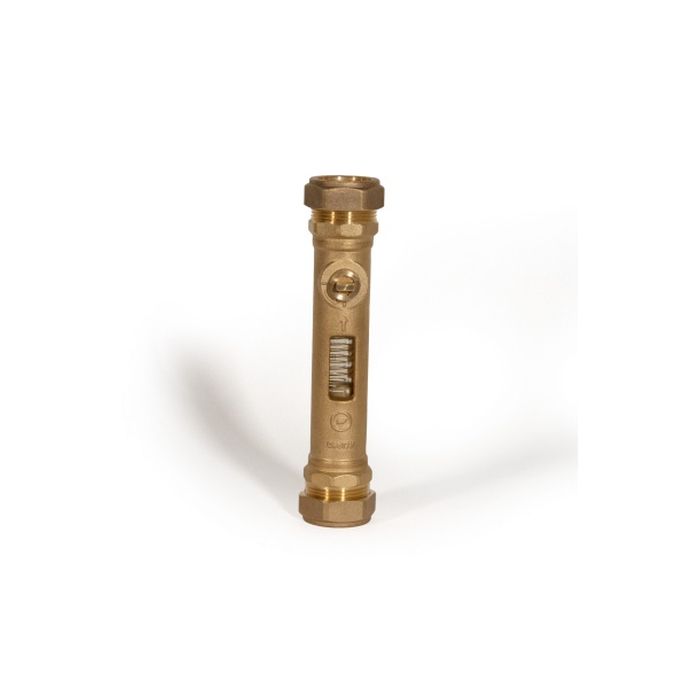

The Intatec 28mm Flow Balancing Valve 5-40LTR ensures precise flow control in heating systems. Designed for a flow range of 5 to 40 litres per minute, it offers easy installation and adjustable settings. This valve enhances efficiency and comfort, making it an essential component for both installers and users.
You need to log in to access the data sheet, user manual, and warranty info.
The Intatec INFSV2840 is a 28mm flow balancing valve for regulating fluid flow in water systems. It has a 5 to 40 L/min flow range and compression connections for installation in 28mm pipework.
Regulates fluid flow through the system within a 5 to 40 L/min range.
Allows straightforward setting and checking of the flow rate during commissioning.
Supplied with 28mm compression inlet connections for use with compatible pipework.
Rated for up to 10 bar operating pressure and 110°C maximum operating temperature.
Water and glycol media compatibility
Install using 28mm compression connections according to EN1254-2. Check system medium and operating conditions against the stated 10 bar and -20°C to 110°C limits.
Designed to regulate flow and support heat collection in cylinders.
Manufacturer
Intatec
Commodity Code
8481801190
Dimensions (mm) (H x W x D)
200 x 55 x 50
Weight (kg)
1
