SKU: 4.240.400

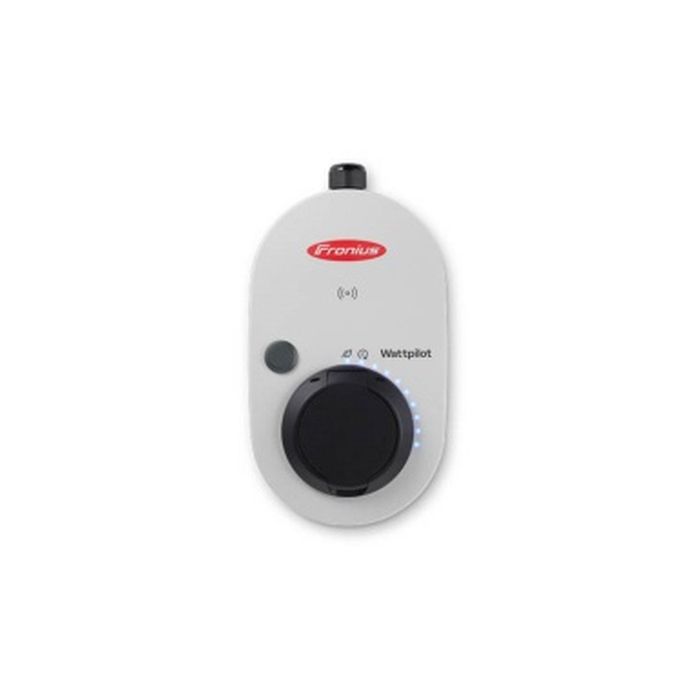

The Fronius Wattpilot Go 22kW J 20 Transportable Wallbox is your ideal electric vehicle charging solution. With rapid 22kW charging, its portable design allows flexible placement, whether at home or on the go. Enjoy easy setup and compatibility with various EV models, ensuring efficient and convenient charging wherever you need it.
You need to log in to access the data sheet, user manual, and warranty info.
The Fronius Wattpilot Go 22 J 2.0 is a portable AC EV charging station for Mode 2 charging, with a 22 kW maximum charging power and Type 2 infrastructure-side socket. It is intended for indoor and outdoor use and supports PV-optimised charging for EV charging from self-generated solar power.
Three-phase charging with a maximum charging power of 22 kW.
Uses dynamic PV surplus charging with automatic 1-/3-phase switching.
CEE32 mains connection and optional adapter sets support mobile charging use.
Built-in 20 mA AC and 6 mA DC residual current device, with configurable current from 6–32 A.
WLAN 802.11 b/g/n, RFID authentication and OCPP 1.6 J communication.
Fronius Wattpilot Go 22 J 2.0 portable EV charging station. Mode 2 AC charging, 22 kW maximum charging power, 230/240 V 1-phase and 400/415 V 3-phase, 6–32 A configurable current, Type 2 socket, integrated 20 mA AC / 6 mA DC RCD, WLAN 802.11 b/g/n, RFID, OCPP 1.6 J, IP65, IK08, suspended upright installation, indoor and outdoor use.
Suspended upright installation. Infrastructure-side Type 2 socket with mechanical locking. Additional residual current circuit breaker and automatic circuit breaker must be connected upstream according to the applicable installation standard. Additional components are required for PV-optimised charging. When installed outdoors, the unit must not be exposed to direct sunlight.
Dynamic PV surplus charging supports use of self-generated solar power, with automatic switching between one-phase and three-phase operation. Eco Mode combines PV surplus with variable electricity tariffs.
Manufacturer
Fronius
Dimensions (mm) (H x W x D)
155 x 287 x 109
Commodity Code
8504909000
Weight (kg)
1.8
